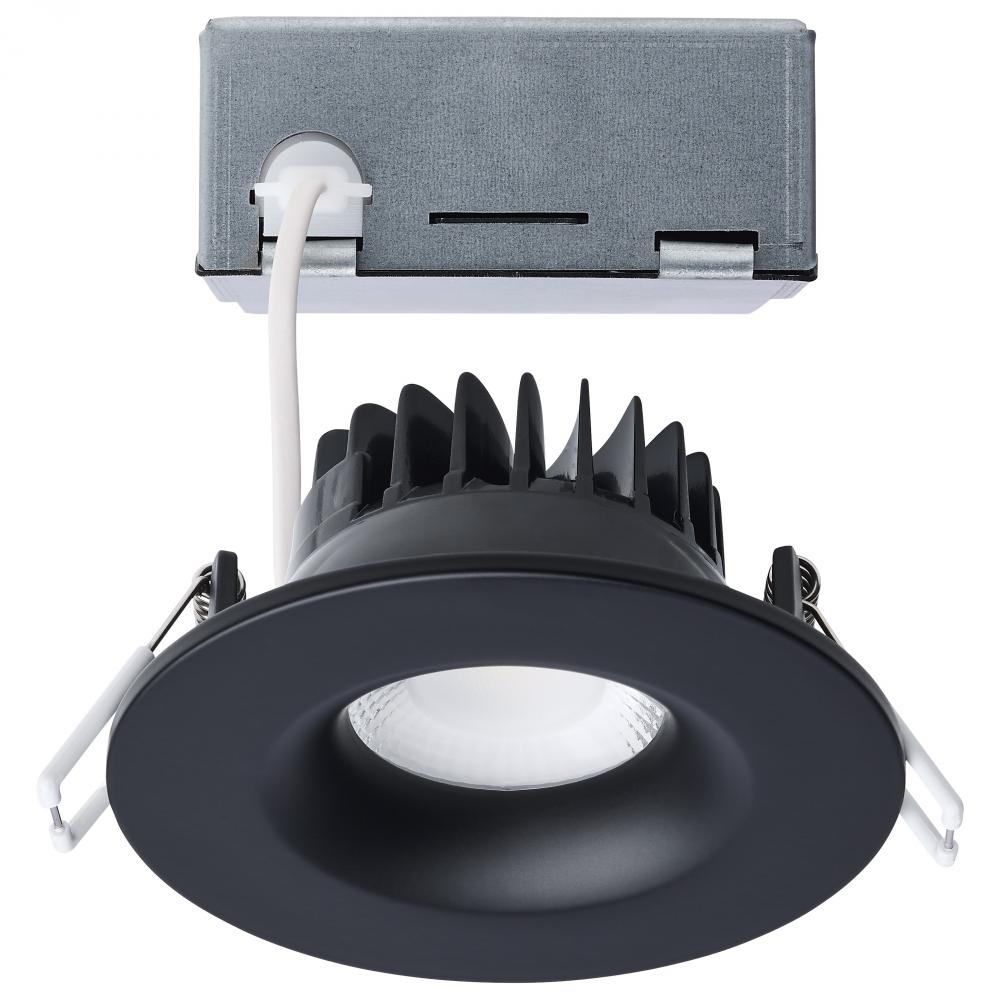

10 Watt LED Direct Wire Downlight; Remote Driver; CCT Selectable; Dimmable; Round; Black Finish (S11631R1)
10 Watt LED Direct Wire Downlight; Remote Driver; CCT Selectable; Dimmable; Round; Black Finish
Product Specification
Item #
S11631R1
Dimensions
Height: 2.17"
Width: 4.38"
Additional product details
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Option
Energy Star
, LED
, Prop 65
Category
Recessed
Sub Category
Direct Wire
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm White to Natural Light
Diameter
4.38
Dimmable
Yes-Dimmable
Each Height
5.51
Each Length
5.31
Each Width
3.74
Lumens
840L
Tariff Code
9405.11.8010
Warranty
5 Year Limited - Fixtures
Air Tight
Yes
Amps
0.100A
ANSI Base
Integrated
Beam Angle
40
CA Prop-65
Lead
CCT Selectable
Yes
CEC
California T24 2016 - 2022 JA8 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Ceiling Aperture
3.5625 in. Cutout
Connection
Direct Wired
Country Of Origin
Vietnam
CRI
90+
Dimmable Down To
100 to 20 percent
Dimmable Function
120V only
Dimming Type
Phase cut
Each Cube
0.0633
Each Quantity
1
Efficacy
84.00 LPW
ES Category
Downlight Recessed
ES Unique ID
ESID-3798636
FCC Compliant
Yes
Feature 1
5-CCT Selectable
Feature 10
Energy Star
Feature 2
90 CRI for Excellent Color Rendering
Feature 3
Dimmable Down to 10%
Feature 4
Wet Location Rated
Feature 5
10W
Feature 6
840 Lumens
Feature 7
Airtight
Feature 8
IC Rated
Feature 9
Title 24
Finish Family
Black
Fixture shape
Round
Has Emergency Battery
No
IC Rated
Yes
Incandescent Equivalent
75W
Indoor Outdoor
Indoor
JA8 Compliant
Yes
Lens Finish
Clear
Lens Material
Acrylic
Long Description
SATCO|NUVO's LED Architectural Downlights with Remote Driver offers an option for a small aperture aesthetic with the energy savings of LED technology. The 40-degree beam angle provides focused illumination while creating the ambiance of your choice wi
Material
Aluminum
Mounting Diameter
3.62
Mounting Height
3.5
Mounting Procedure
Ceiling
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
R9 Value
51
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO's LED Architectural Downlights with Remote Driver offers an option for a small aperture aesthetic with the energy savings of LED technology. The 40-degree beam angle provides focused illumination while creating the ambiance of your choice wi
Safety Listing
cETLus - Listed
SDS class
LED_Fixture
Short Description
10W/DW/DNL3/CCT/RND/RD/BK
Sloped Ceiling Compatible
No
Temperature (CCT)
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant
Exempt
Title 24 Compliant
Yes
Total Harmonic Distortion
<30%
Trim Color
Black
Trim Material
Aluminum
Wattage Selectable
No
Weight Lb.
1.01
