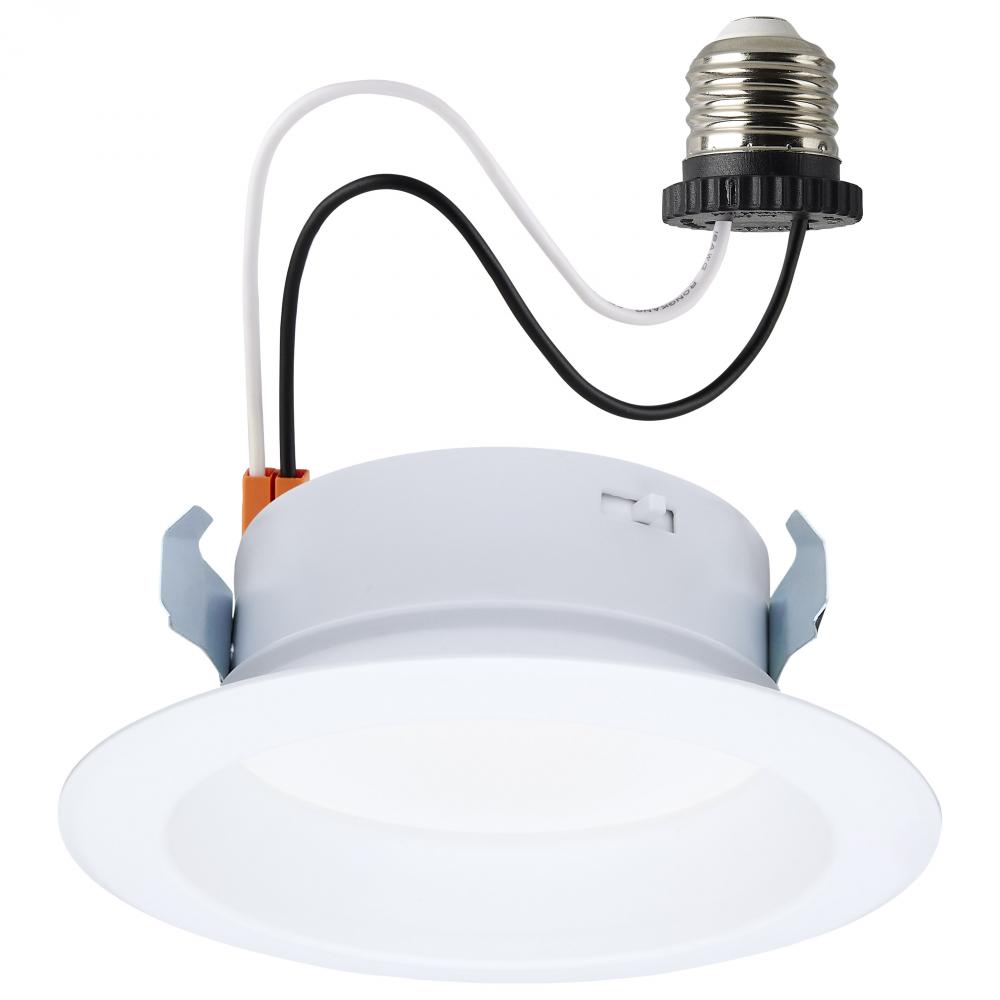

10 Watt LED High Output Downlight Retrofit; 4 Inch; 27K/30K/35K/40K/50K CCT Selectable; Round; White
Image may not reflect selected features
/vendors/4799/large/S11647.jpg
additional image
additional image
additional image
additional image
additional image
additional image
additional image
additional image
additional image
additional image
additional image
additional image
10 Watt LED High Output Downlight Retrofit; 4 Inch; 27K/30K/35K/40K/50K CCT Selectable; Round; White (S11647)
10 Watt LED High Output Downlight Retrofit; 4 Inch; 27K/30K/35K/40K/50K CCT Selectable; Round; White Finish
Product Specification
Item #
S11647
Dimensions
Height: 1.86"
Width: 5.12"
Finish
White
Energy Star
Prop 65
Additional product details
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Option
Energy Star , LED , Prop 65
Category
Recessed
Sub Category
Retrofits
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm White to Natural Light
Diameter
5.12
Dimmable
Yes-Dimmable
Each Height
5.63
Each Length
5.63
Each Width
2.36
Lumens
820L
Tariff Code
8539.52.0091
Warranty
5 Year Limited - Fixtures
Air Tight
Yes
Amps
0.100A
ANSI Base
E26 Adapter
Beam Angle
100
CA Prop-65
Lead
Can Size
4 in.
CCT Selectable
Yes
CEC
California T24 2016 - 2022 JA8 Listed; T20 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
California T24 Listed
Ceiling Aperture
4.06 in. Cutout
Country Of Origin
China
CRI
90+
Dimmable Down To
100 to 10 percent
Dimmable Function
120V only
Dimming Type
Phase cut
Each Cube
0.0433
Each Quantity
1
Efficacy
82.00 LPW
ES Category
Downlight Solid State Retrofit
ES Unique ID
ESID-3722188
FCC Compliant
Yes
Feature 1
CCT Selectable
Feature 2
High Lumen Output 90 CRI for High Quality Lighting
Feature 3
Round, Smooth Baffle with White Trim
Feature 4
E26 Adapter Included
Feature 5
T20 and T24 Compliant
Feature 6
Aluminum Construction with Polycarbonate Lens
Feature 7
50,000 Hour Functional Life
Finish Family
White
Fixture shape
Round
Has Emergency Battery
No
Incandescent Equivalent
65W
Indoor Outdoor
Indoor
JA8 Compliant
Yes
Lens Finish
Matte Frosted
Lens Material
Polycarbonate (PC)
Long Description
SATCO NUVO's LED CCT Selectable 4 inch High Lumen Retrofit Downlight, S11647, will elevate the lighting in any space. Designed with impeccable 90 CRI color rendering, you can make your space brighter while saving energy with this 1,100 high lumen LED d
Material
Aluminum
Mounting Diameter
4.25
Mounting Height
5.5
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
R9 Value
50
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO NUVO's LED CCT Selectable 4 inch High Lumen Retrofit Downlight will elevate the lighting in any space. Designed with impeccable 90 CRI color rendering, you can make your space brighter while saving energy with this 1,100 high lumen LED downlight.
Safety Listing
cULus - Classified;cULus - Listed
SDS class
LED_Fixture
Short Description
10WLED/DLR/4/CCT-SEL/RD/WH
Sloped Ceiling Compatible
No
Temperature (CCT)
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant
Yes
Title 24 Compliant
Yes
Total Harmonic Distortion
<30%
Trim Color
White
Trim Material
Steel
Wattage Selectable
No
Weight Lb.
0.27
