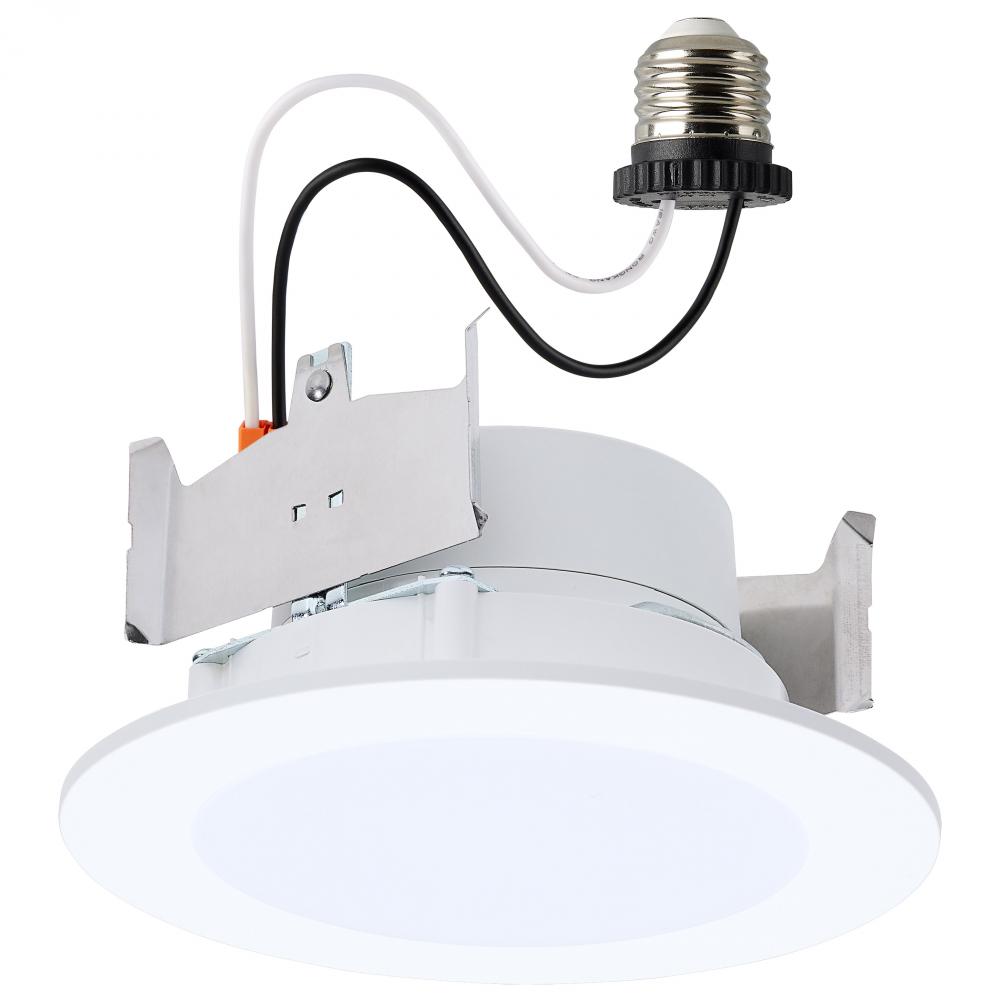

6.5/8/9.3 Watt LED Downlight Retrofit; 27K/30K/35K/40K/50K CCT; 4 Inch; Flat Wafer; Round; Matte : S11894

No Image
Available

Image may not reflect selected features

6.5/8/9.3 Watt LED Downlight Retrofit; 27K/30K/35K/40K/50K CCT; 4 Inch; Flat Wafer; Round; Matte (S11894)

6.5/8/9.3 Watt LED Downlight Retrofit; 27K/30K/35K/40K/50K CCT; 4 Inch; Flat Wafer; Round; Matte White Finish

Product Specification

Item #

S11894

Dimensions

Height: 2.64"

Width: 5.31"

Additional product details

Option

Energy Star , LED , Prop 65

Category

Recessed

Sub Category

Retrofits

Style

Utility

Avg Rated Hours

50000

Bulb Type1

LED

Color Temperature

Warm White to Natural Light

Diameter

5.31

Dimmable

Yes-Dimmable

Each Height

5.51

Each Length

5.51

Each Width

2.95

Lumens

600L/750L/900L

Tariff Code

8539.52.0091

Warranty

5-Years

Air Tight

Yes

Amps

0.080/0.085/0.090A

ANSI Base

E26 Adapter

Beam Angle

110

CA Prop-65

Lead

Can Size

4 in.

CCT Selectable

Yes

CEC

California T24 2016 - 2022 JA8 Listed; T20 Listed

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Country Of Origin

China

CRI

90+

Dimmable Down To

100 to 10 percent

Dimming Type

Phase cut

Each Cube

0.0518

Each Quantity

Efficacy

92.31/93.75/96.77 LPW

ES Category

Downlight Solid State Retrofit

ES Unique ID

ESID-3994239

FCC Compliant

Yes

Feature 1

Field Selectable (3 wattages and 5 CCT)

Feature 10

5 Year Warranty

Feature 2

Flat Lens Design for Reduced Glare

Feature 3

Non-Conductive "Dead-Front" Trim

Feature 4

4-Inch Round, White Finish

Feature 5

Airtight Rated

Feature 6

90 CRI High Quality Illumination

Feature 7

Dimmable

Feature 8

Wet Location Rated

Feature 9

50,000 Hour Functional Life

Finish Family

White

Fixture shape

Round

IC Rated

Yes

Incandescent Equivalent

65W

Indoor Outdoor

Indoor

JA8 Compliant

Yes

Lens Finish

Matte Frosted

Lens Material

Polycarbonate (PC)

Long Description

SATCO NUVO's S11894 is a 4-inch, flat-faced PRO Series LED wafer-style retrofit downlight offering a sleek, high-performance lighting solution with effortless installation. This model features field-selectable wattage (6.5W/8W/9.3W) and an on-unit swit

Material

Plastic

Mounting Diameter

Operating Frequency

60Hz

Operating Temp

-20C (-4F) to +40C (+104F)

Order In Multiples Of

Pack Type

Box

Power Factor

>0.9

Quantity In Pack

R9 Value

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

SATCO NUVO's PRO Series LED wafer-style retrofit downlights offer a sleek, high-performance lighting solution with effortless installation. Designed for versatility, these downlights come in 4-inch and 6-inch round models with a choice of flat-face or

Safety Listing

cETLus - Classified

SDS class

LED_Fixture

Short Description

9WLED/DLR/4/FS/WF/RND/WH

Sloped Ceiling Compatible

Specification Notes

Default CCT setting is 2700K; Default Wattage setting is 8W

Temperature (CCT)

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant

Yes

Title 24 Compliant

Yes

Total Harmonic Distortion

<20%

Trim Material

Plastic (PS)

Wattage Selectable

Yes

Weight Lb.

0.43

Finish
